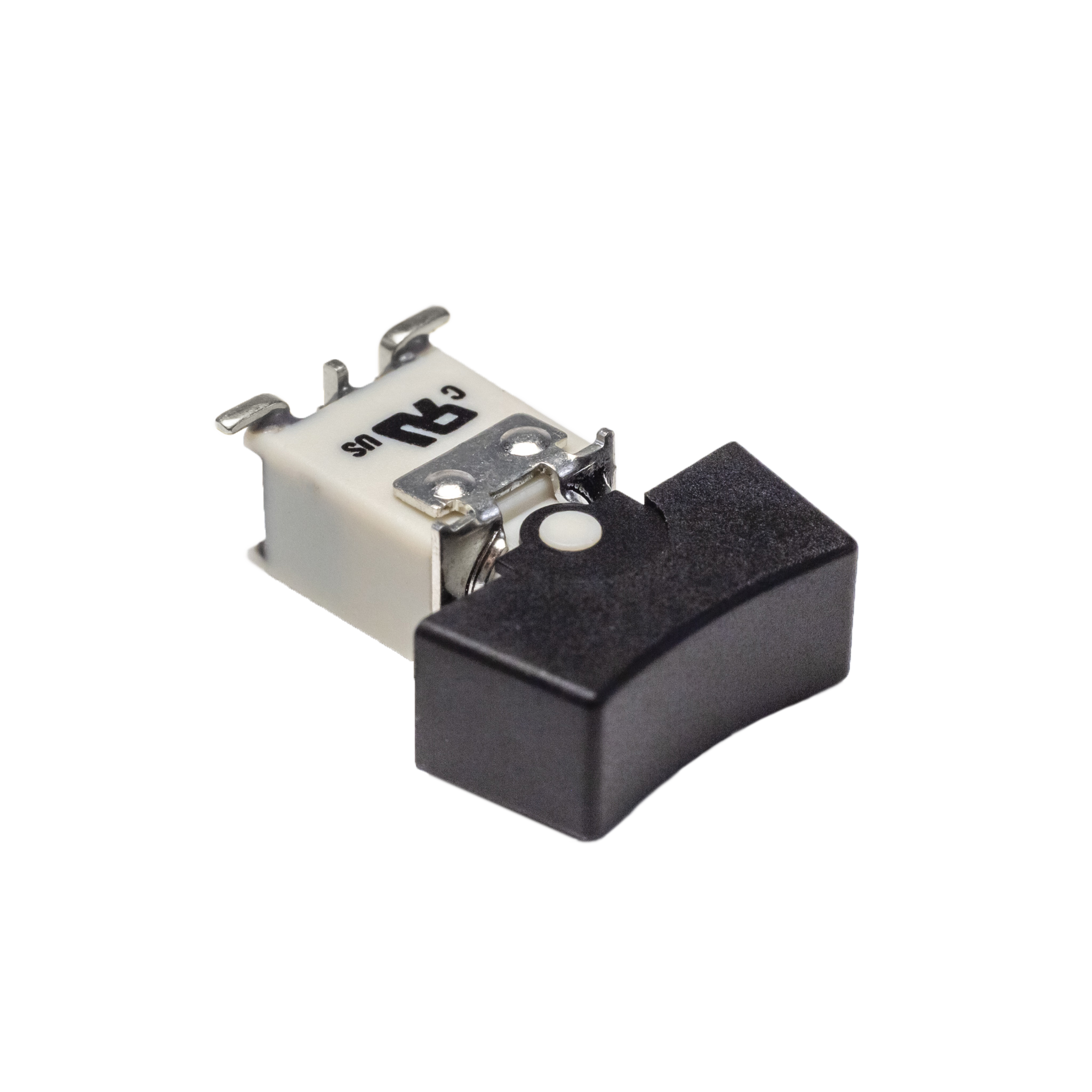

400B Series Subminiature, Sealed Rocker Switch
The 400B Series subminiature, sealed rocker switch features include a low profile for surface mount applications, an ergonomic design for human interface, and a right angle design strengthening support to the PC board. This sealed rocker switch has an IP67 ingress protection rating and is totally protected against dust and temporary immersion up to 1 meter for 30 minutes. The 400B Series sealed rocker switches come with silver contacts electrically rated for up to three amps of 120 VAC and one amp of 250 VAC. They are expected to perform 50,000 make-and-break cycles at a full electrical load. These sealed rocker switches also operate in temperatures ranging from -30°C to 85°C. Applications for these subminiature, sealed rocker switches include:
Instrumentation
Telecommunications
Test equipment
Computer peripherals
Networking
FEATURES
IP67 sealed against dust and moisture
3A ,120VAC electrical rating, or 1A, 250VAC
Surface mount design
1 pole; momentary and maintained (latching) functions
