45Amp High Flow Power HFP® 9113+9114 Series

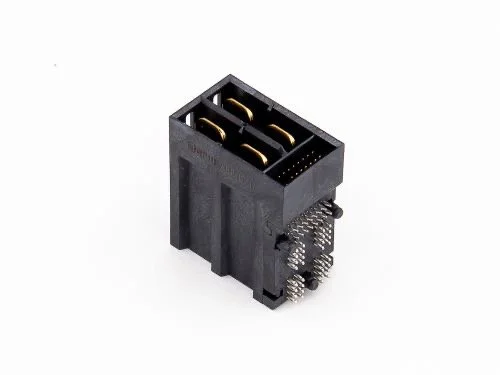

Oupiin provides you with high flow power HFP® connectors which offers a current rating up to 45AMP per contact, and with signal combination as below to increase flexibility in design and versatility in use for customers’ design.
2X2 Power + Left 6 Signal
2X2 Power + Right 6 Signal
2X2 Power + Bottom 16 Signal
* Ventilated housing gives maximum air flow for effective heat dissipation.
* Single post 50N with maximum total of 500N (including terminal) create strong
vibration resistance.
* High flow power with Right 6pin or Left 6pin or Bottom 16pin signal combination to
increase flexibility in design and versatility in use for customers’ design.
* 0.5m Ω Low contact resistance to minimize heat.
* Single blade with multiple points of contact for stable and secure mating.
* 4mm space meets safety requirement.
* Off center guide for accurate blind mate.
Datasheet 9113-A22LS06CB30-CB30P
Oupiin provides you with high flow power HFP® connectors which offers a current rating up to 45AMP per contact, and with signal combination as below to increase flexibility in design and versatility in use for customers’ design.
2X2 Power + Left 6 Signal
2X2 Power + Right 6 Signal
2X2 Power + Bottom 16 Signal
* Ventilated housing gives maximum air flow for effective heat dissipation.
* Single post 50N with maximum total of 500N (including terminal) create strong
vibration resistance.
* High flow power with Right 6pin or Left 6pin or Bottom 16pin signal combination to
increase flexibility in design and versatility in use for customers’ design.
* 0.5m Ω Low contact resistance to minimize heat.
* Single blade with multiple points of contact for stable and secure mating.
* 4mm space meets safety requirement.
* Off center guide for accurate blind mate.
Datasheet 9113-A22LS06CB30-CB30P
Oupiin provides you with high flow power HFP® connectors which offers a current rating up to 45AMP per contact, and with signal combination as below to increase flexibility in design and versatility in use for customers’ design.
2X2 Power + Left 6 Signal
2X2 Power + Right 6 Signal
2X2 Power + Bottom 16 Signal
* Ventilated housing gives maximum air flow for effective heat dissipation.
* Single post 50N with maximum total of 500N (including terminal) create strong
vibration resistance.
* High flow power with Right 6pin or Left 6pin or Bottom 16pin signal combination to
increase flexibility in design and versatility in use for customers’ design.
* 0.5m Ω Low contact resistance to minimize heat.
* Single blade with multiple points of contact for stable and secure mating.
* 4mm space meets safety requirement.
* Off center guide for accurate blind mate.
Datasheet 9113-A22LS06CB30-CB30P
Available Part Numbers:

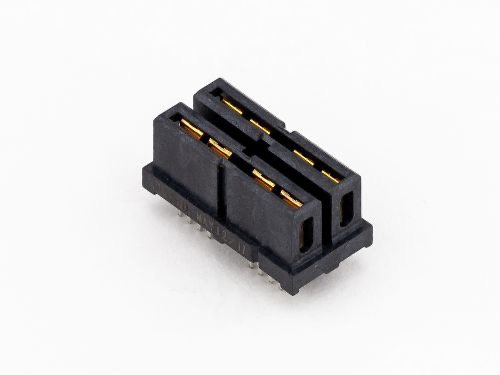

9113-A22BCB30P

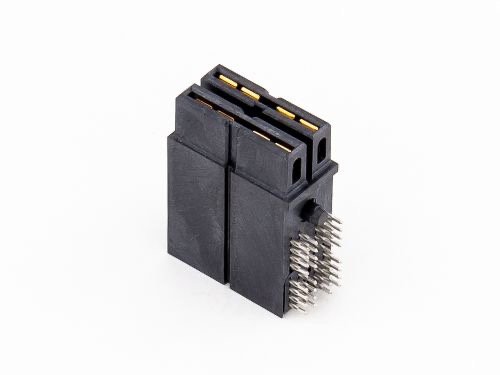

9114-A22

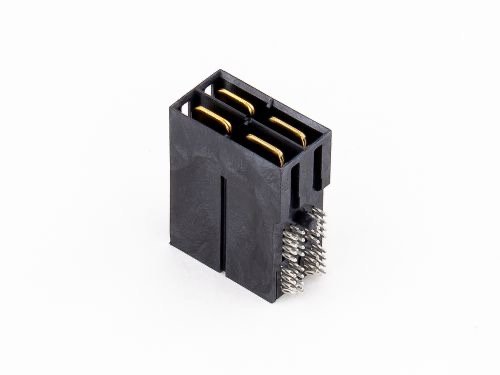

9114-B22

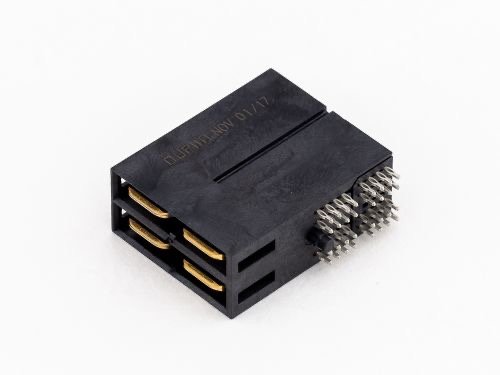

9114-A22
9113-G22AB7P
9114-G22AB7P

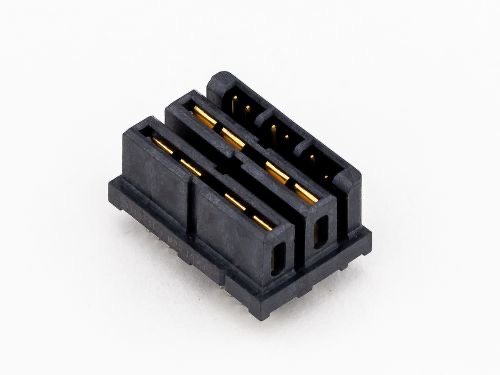

9113-A22LS06CB30-CB30P

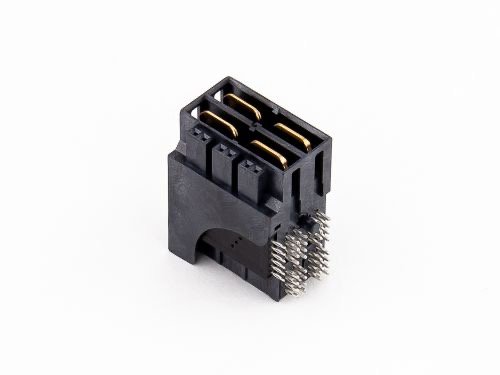

9114

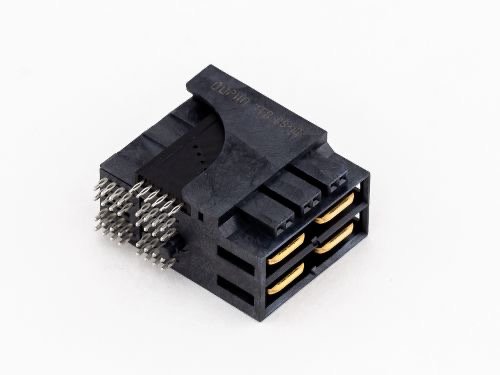

9114
9113-G22LS06B7P
9114-G22LS06AB7P

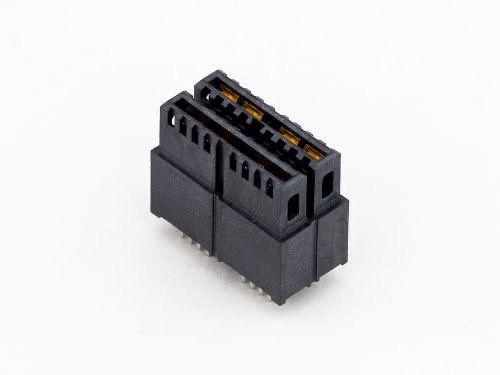

9113-A22BS16CB30-CB30P
9114-A22
9114-B22
