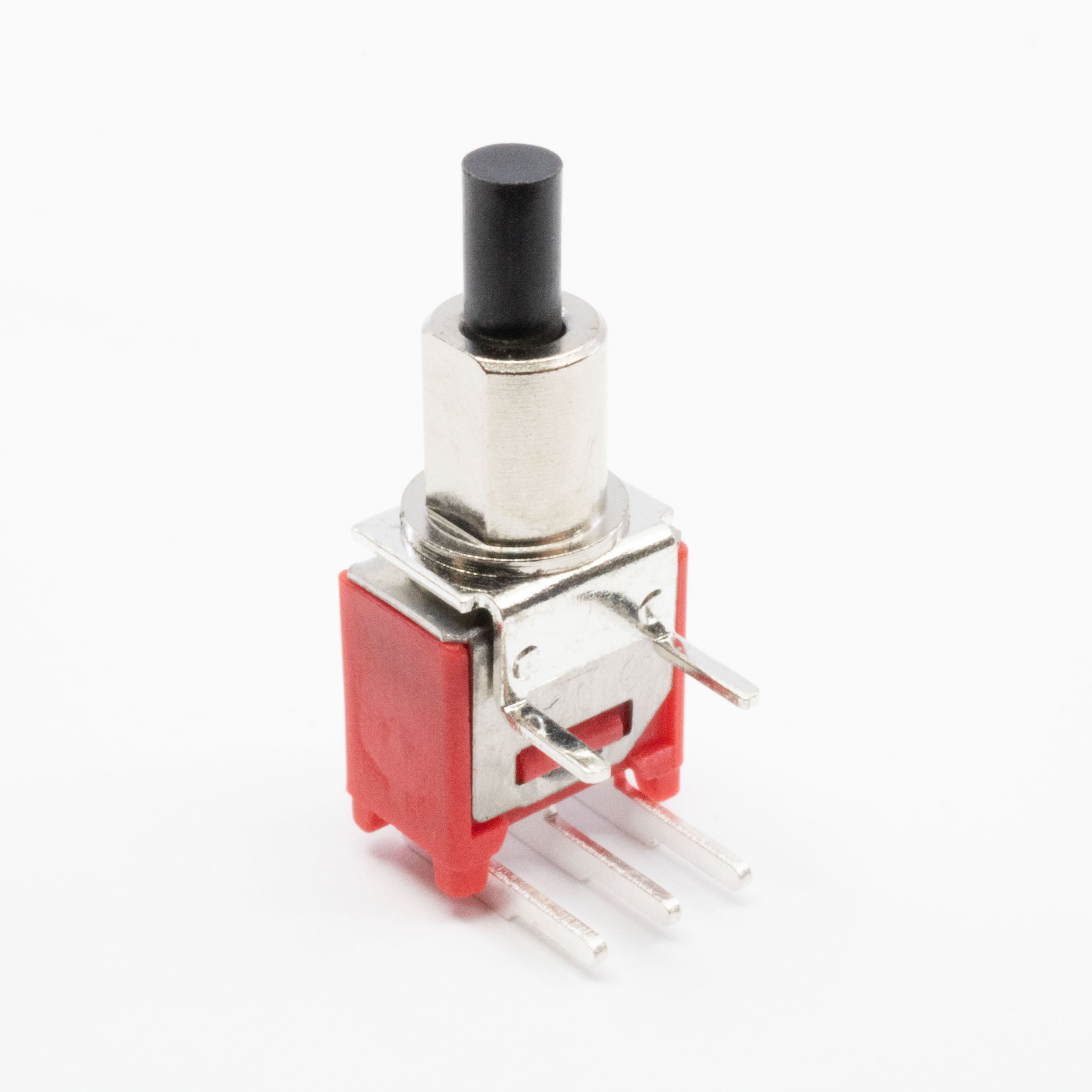

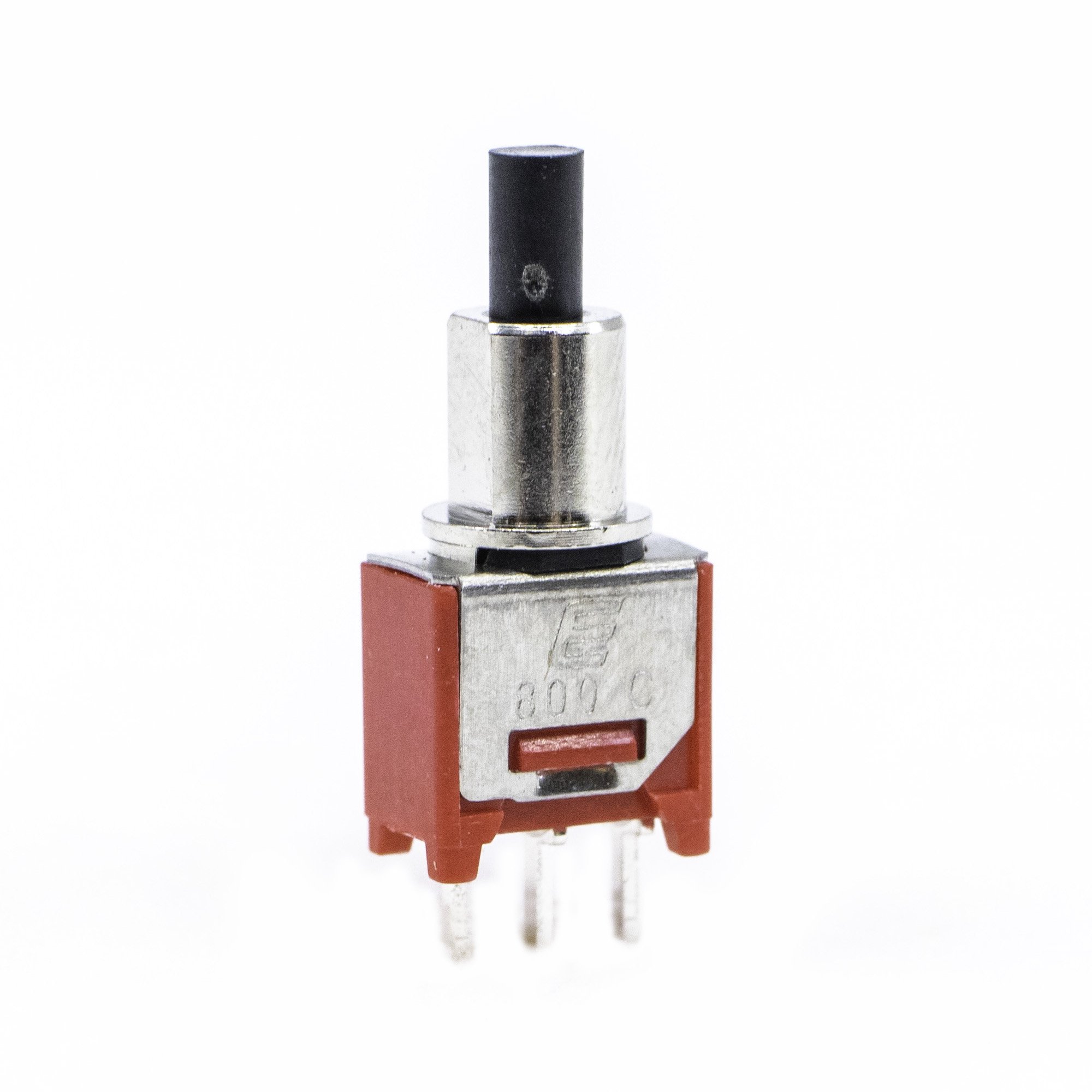

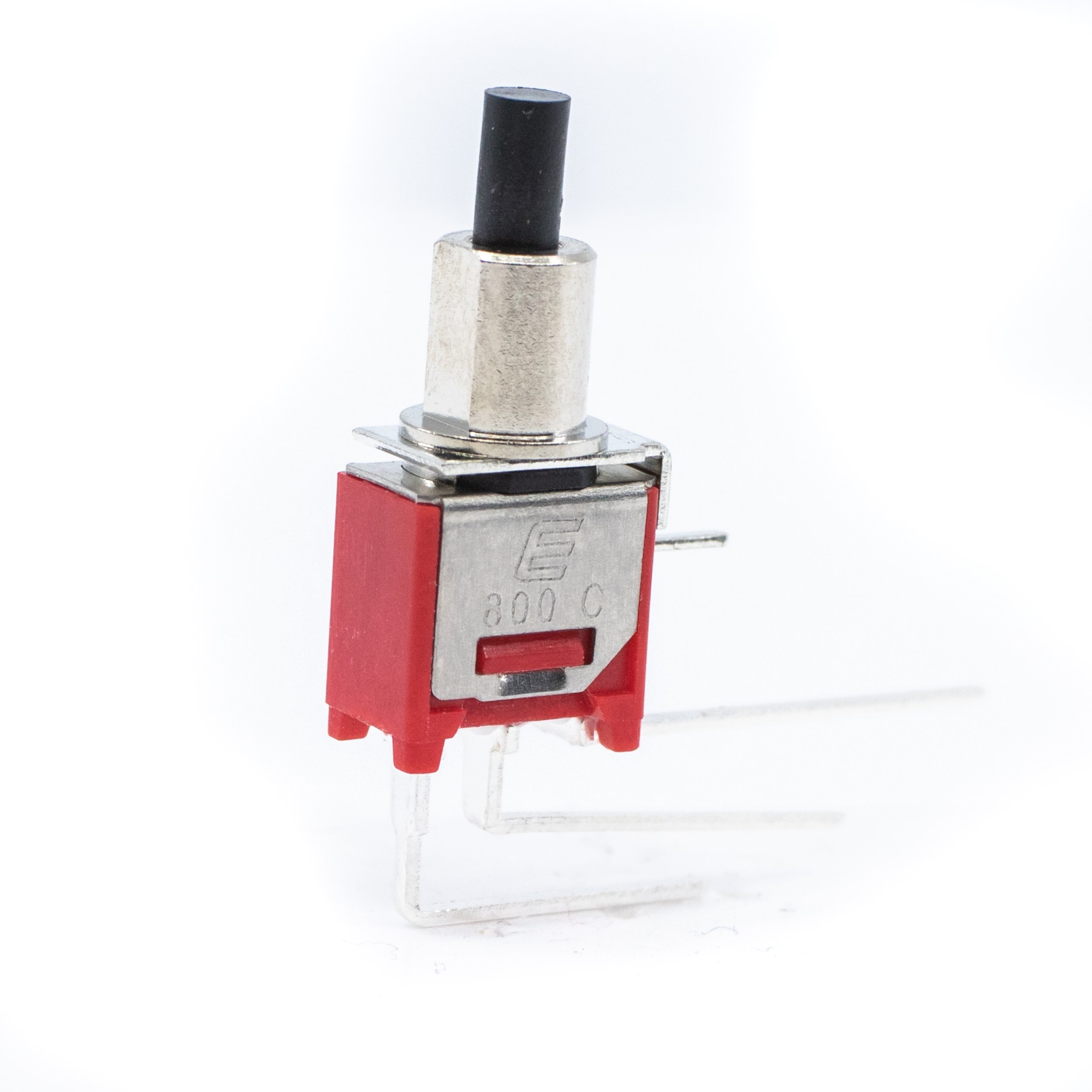

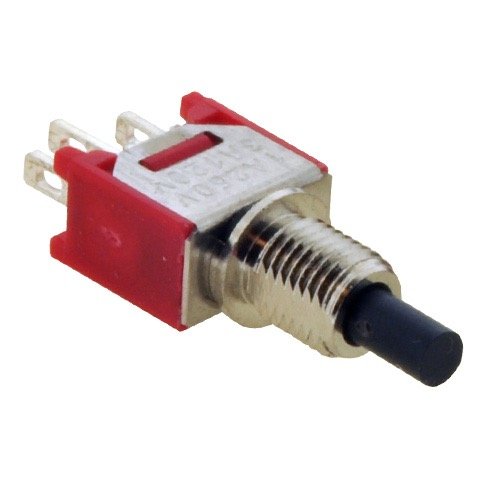

800C Series Alternating Action Miniature Pushbutton Switch

$0.00

  • Miniature in size

  • Termination options: right angle PCB pin, solder lug or vertical PCB pin

  • Panel mount or PCB mount switch

  • Alternating action design, SPDT functions

  • Electrical Rating

    • Silver: 3A @ 120VAC or 28 VDC, 1A @ 250VAC

    • Gold: 0.4VA @ 20V Max (AC or DC)

  • Full Travel: 1.88mm; Electrical Travel: 1.34mm

  • Operating Force: 350gf

  • Operating Temperature: -30°C to 85°C

    Datasheet
