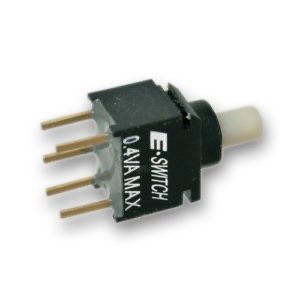

800U Series Ultraminiature, Sealed Pushbutton Switch
The 800U Series ultraminiature, sealed pushbutton switch has a lot to offer in its tiny size. With both single and double pole options and a sculptured bushing, you can choose between a right angle, vertical, or vertical right angle though-hole termination. You also have color options of black, red, or white. This ultraminiature pushbutton switch has an epoxy seal and gold contacts. The dimensions are as small as 4.5mm x 7.0mm, depending on termination option. You can create a part number for just the switch, or both the switch and cap, from the configurator tab on this page. Read the options carefully on the configurator. You can also order the cap for this switch separately. The applications for the 800U Series ultraminiature pushbutton switch include:
Consumer electronics
Medical devices
Audio visual
Instrumentation
FEATURES
Ultraminiature in size
IP67 rated for dust and moisture protection
Multiple termination and color options
Single- or double-pole circuits
