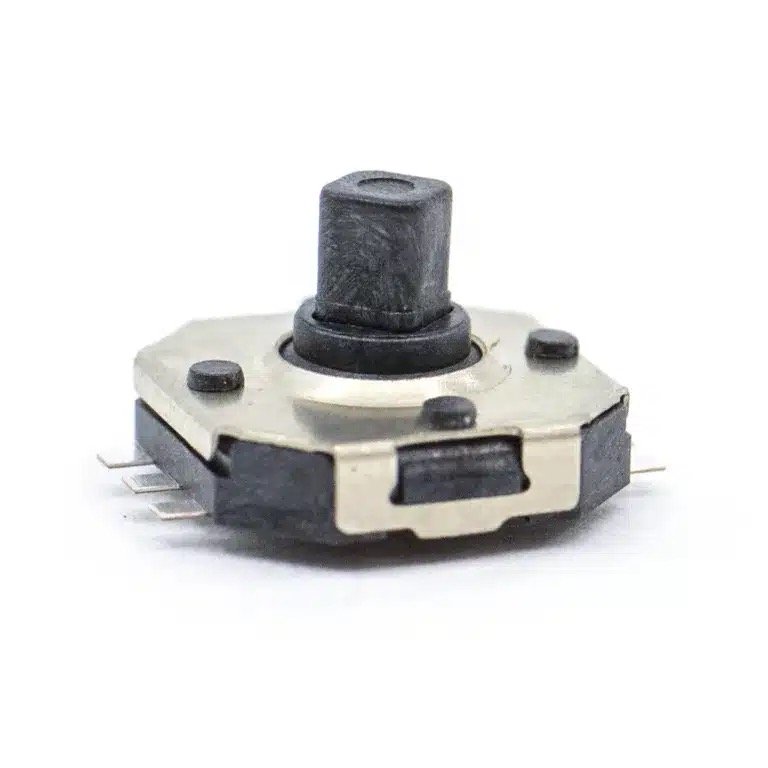

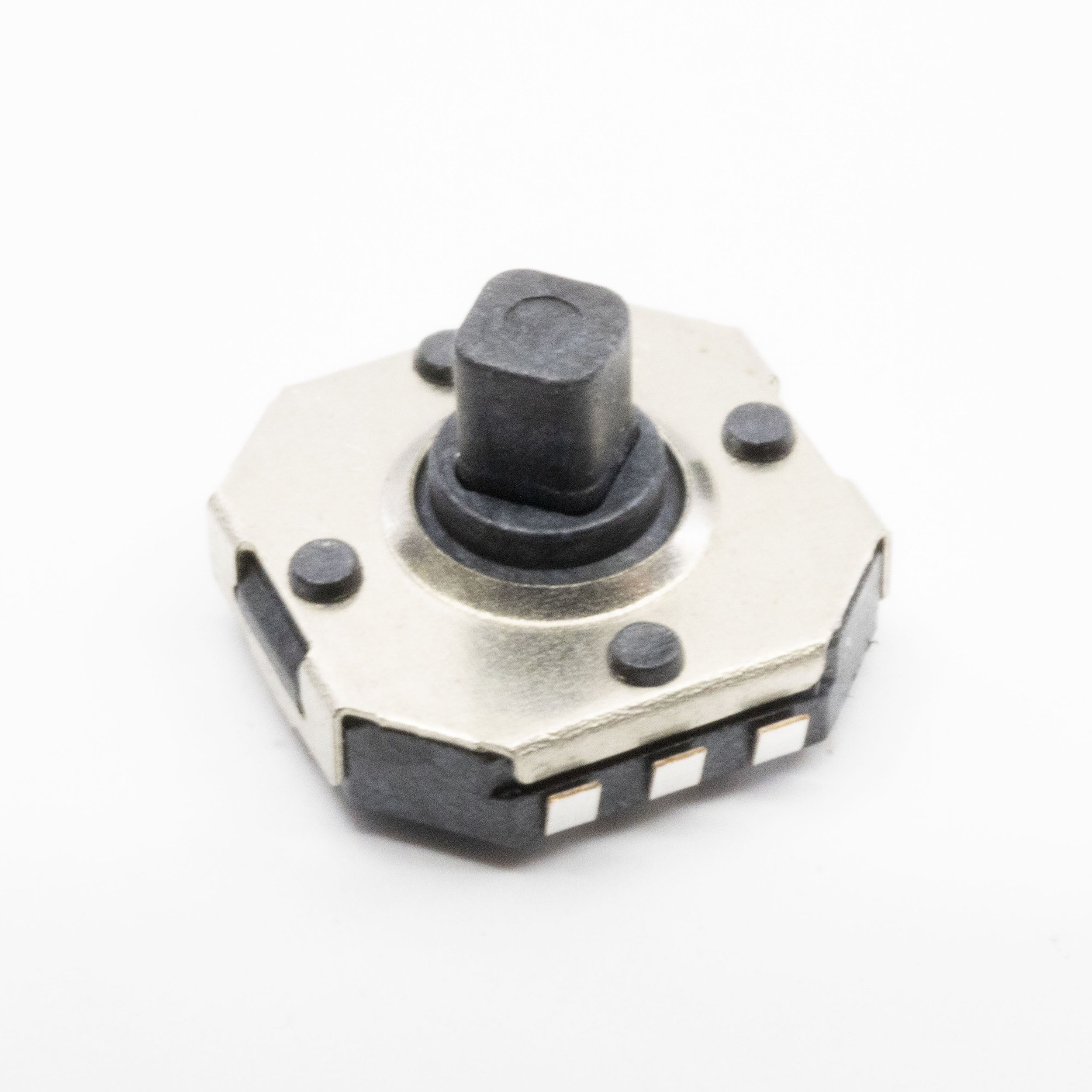

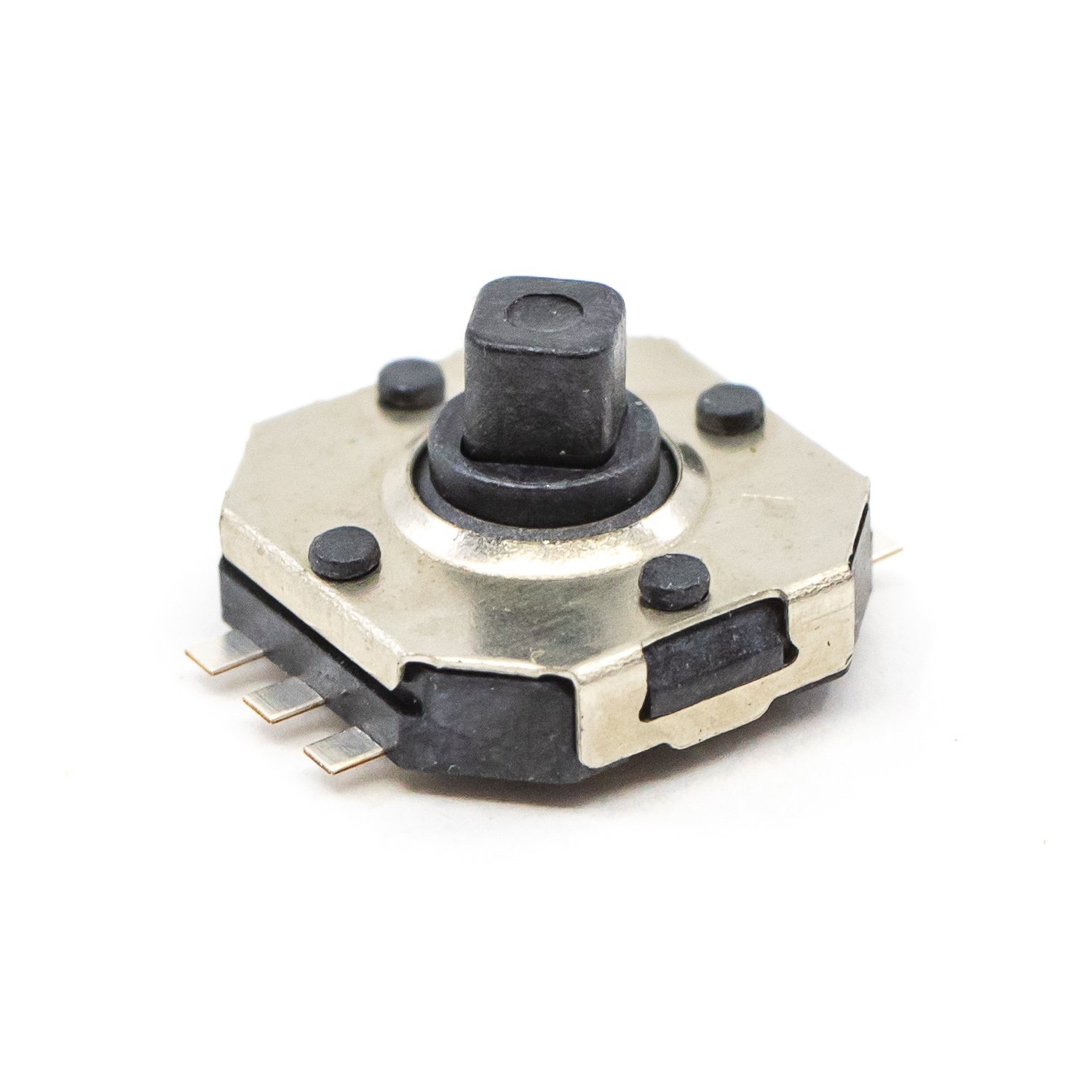

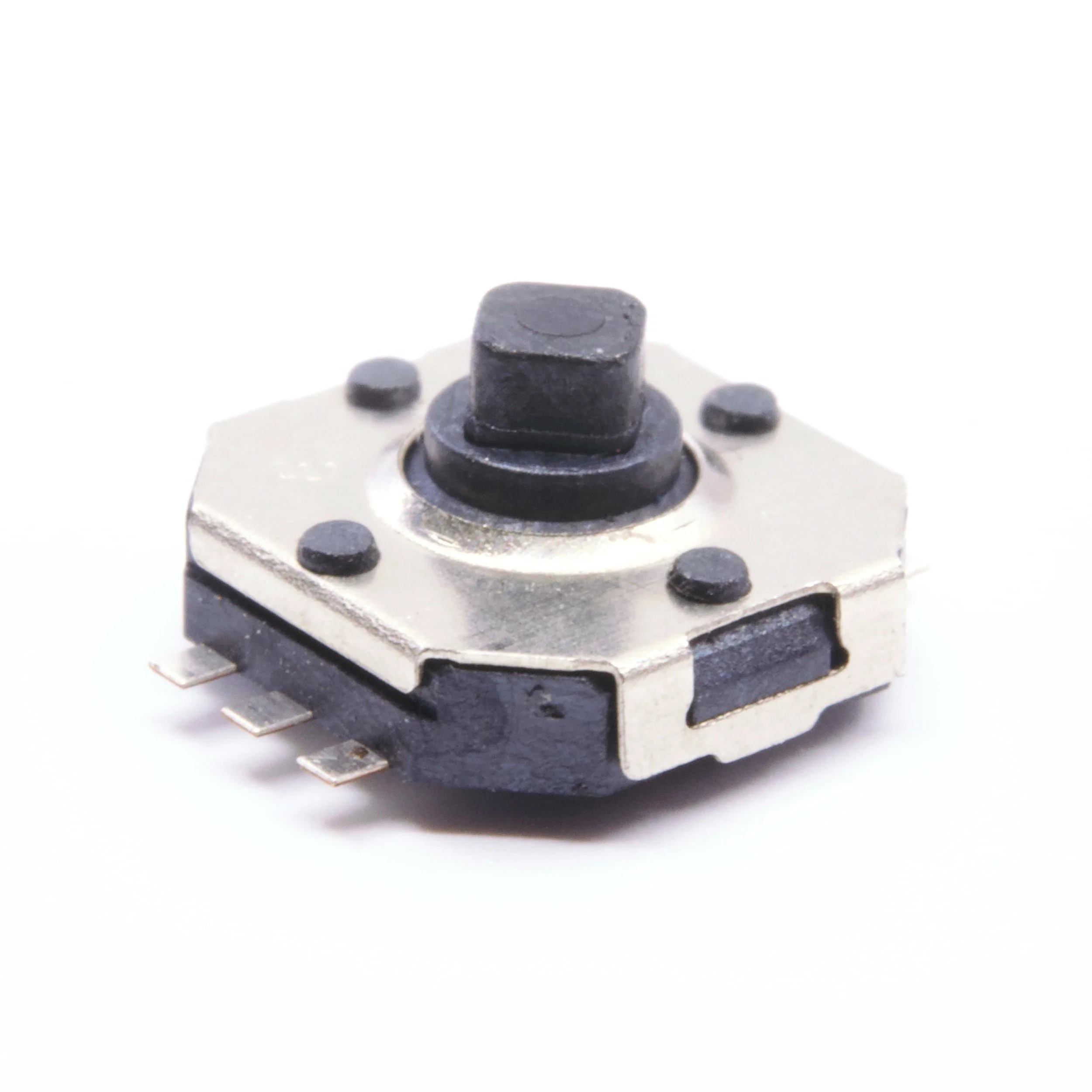

JS1400 Series 5-Position, Joystick Navigation Switch
5-position, joystick navigation switch; 4-way directional, center select
Surface mount (SMT) design
Electrical rating: 50mA 12VDC
7.4mm x 7.7mm
4.0mm, 4.5mm, 5.0mm, or 6.4mm actuator height options
Flat gull wing, or inverted gull wing (J lead) termination options
Operating force: Center: 360gf ± 60gf; Tilt: 160gf ± 50gf
100,000 cycles mechanical life
Travel: 5° +2.5°/-1° tilt; 0.25mm +0.1/-0.2mm center
Silver contact material
-40°C to 85°C operating temperature
Tape and reel packaging
