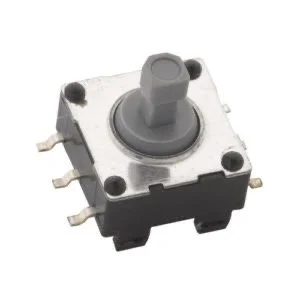

JS5208 Series 5-Position, Joystick Navigation Switch
The JS5208 Series five-position, joystick navigation switch replaces five independent switches. With a life expectancy of up to 100,000 cycles, the JS5208 Series navigation switch can stand the test of time. These five-position joystick switches also operate in temperatures ranging from -20 to 70°C, making them ideal for any environment.
The JS5208 Series joystick switch is electrically rated to handle 20mA of 15VDC current and is designed for surface mount applications that require navigation, such as consumer electronics where a user interface is required.
Other applications for this 5-position, joystick navigation switch include:
Handheld instrumentation
Telecommunications
Navigation
FEATURES
5-position navigation switch
12.4mm x 12.4mm base; 12.2mm profile
Long life expectancy of up to 100,000 cycles
Surface mount design
