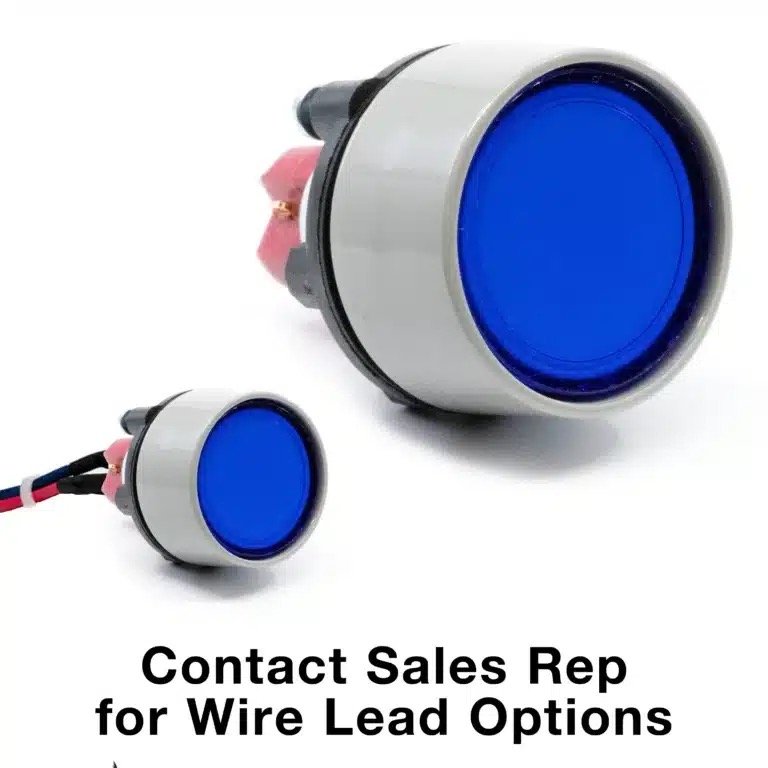

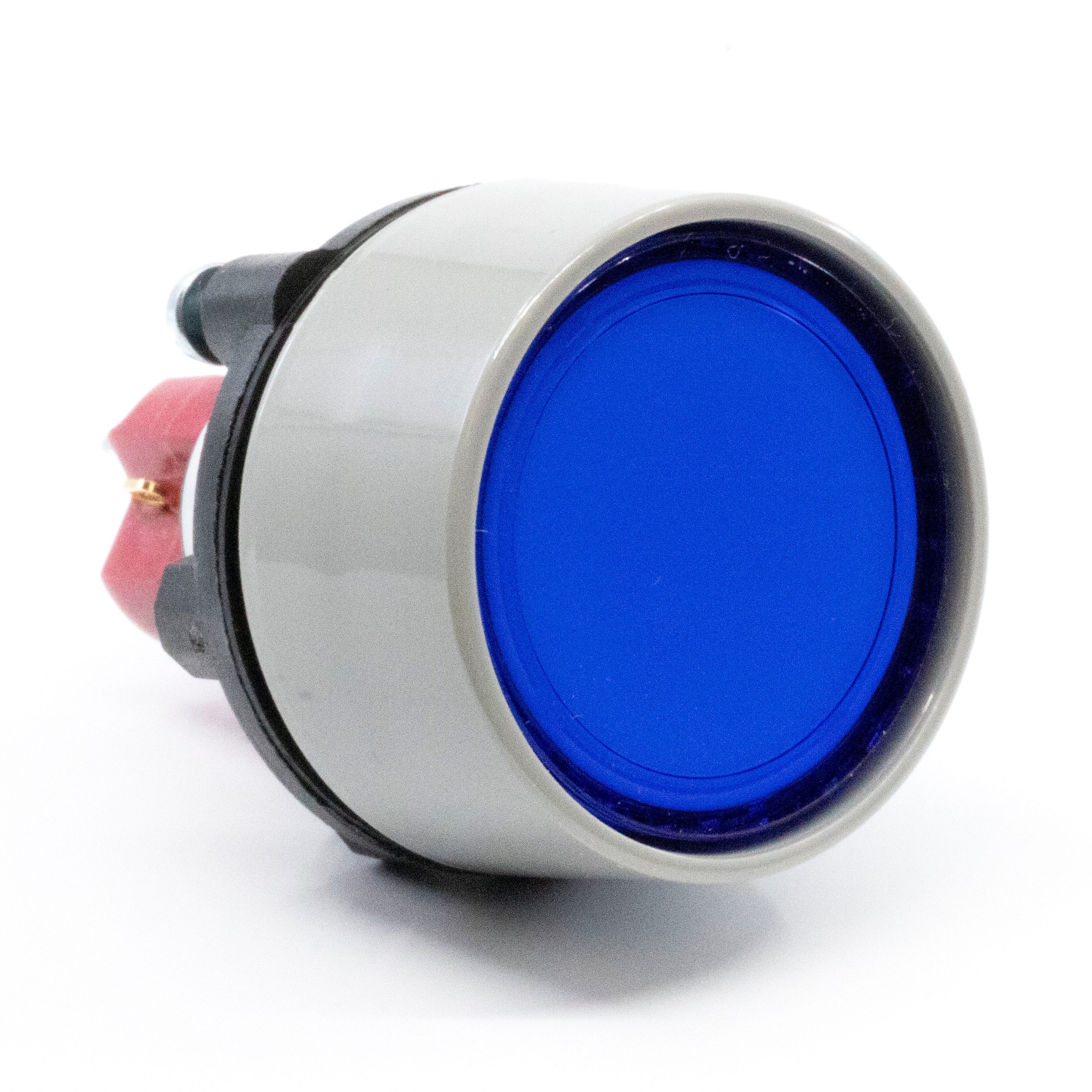

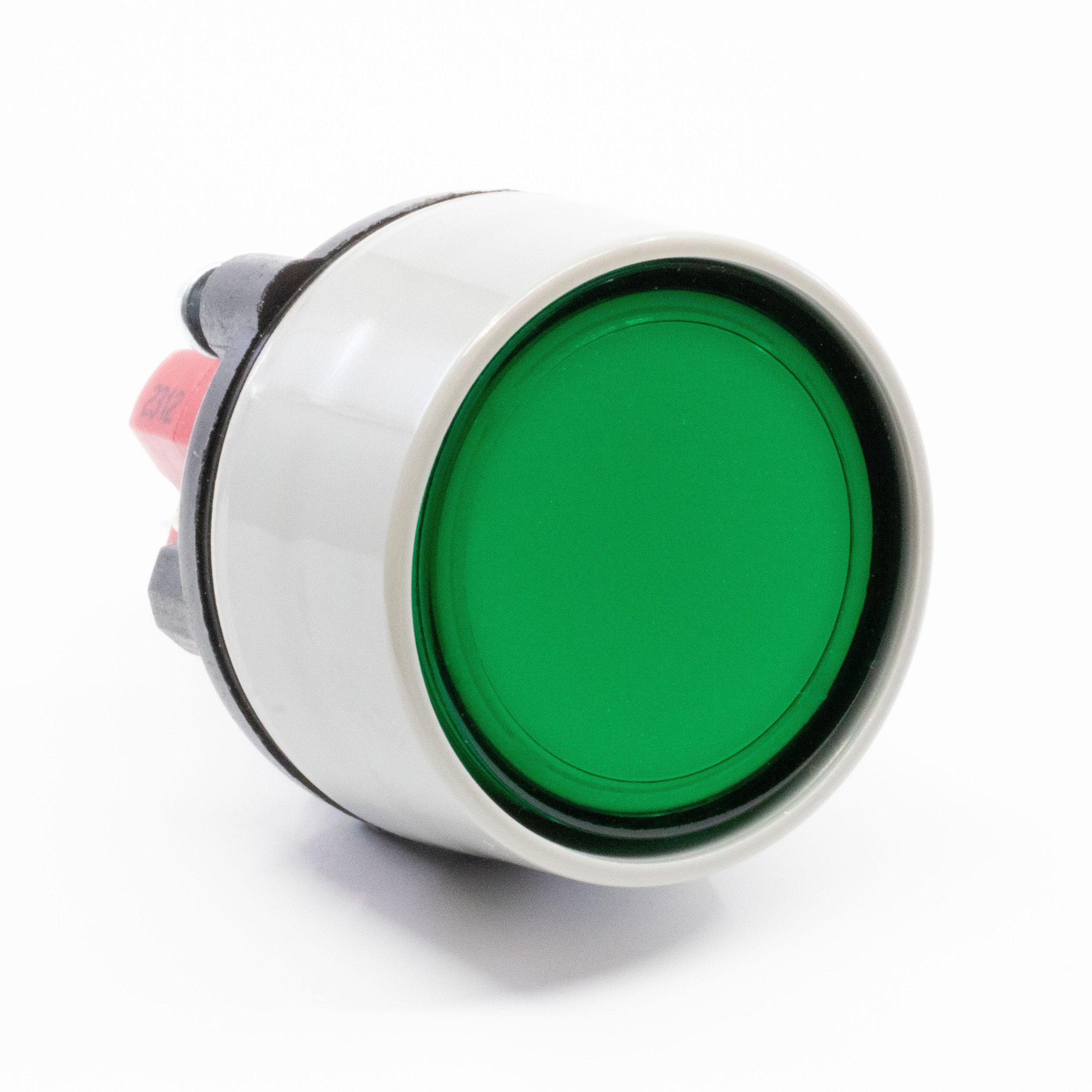

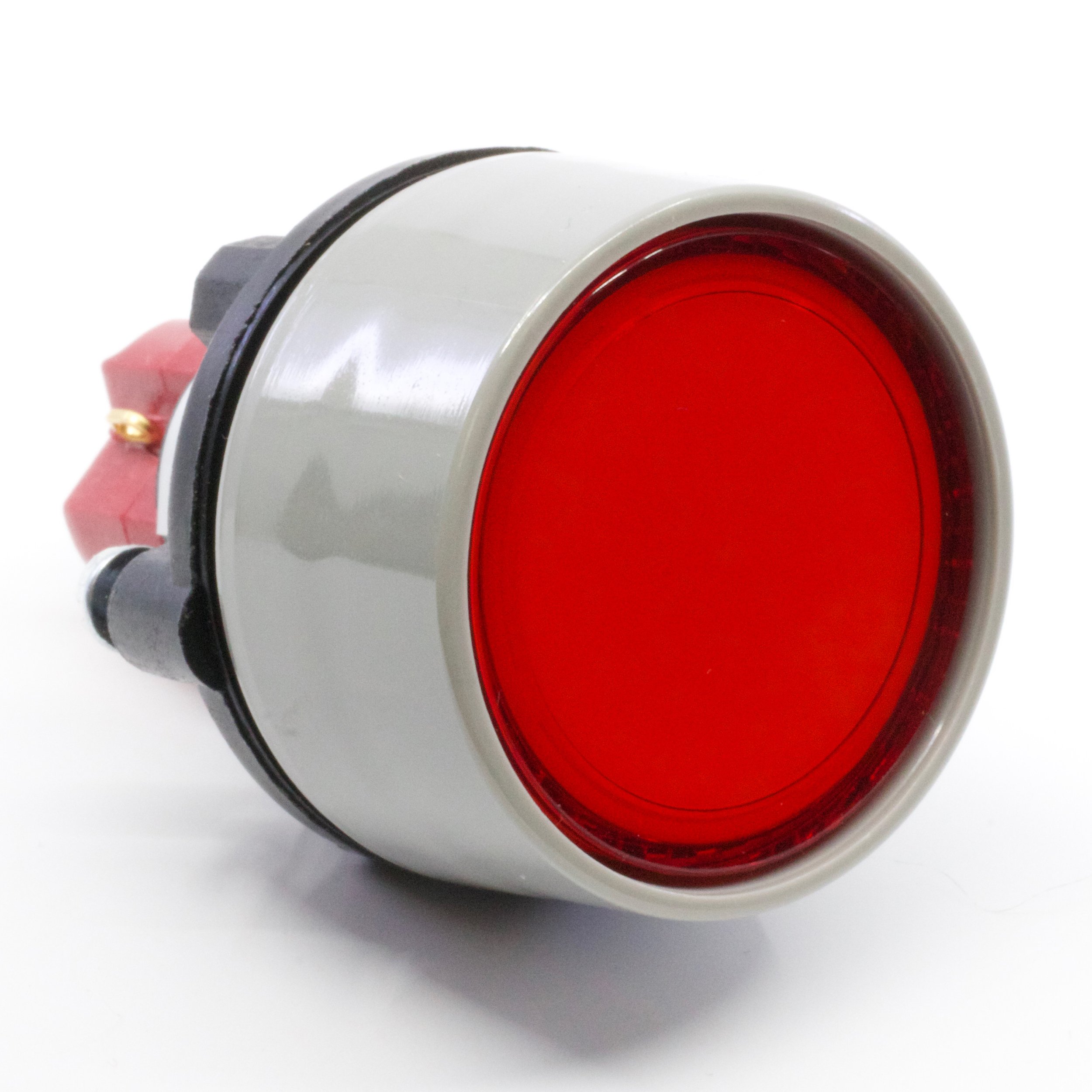

LA Series Sealed, Illuminated Pushbutton Switch
Modular interface/contact block design
Robust product for industrial applications
Attractive front panel design
Panel cutout sizes: 22mm, 25.5mm and 30.5mm in diameter
IP65 rated for protection from dust and moisture
Power rated for direct and alternating currents
Contact Rating
5A @ 250 VAC
8A @ 125 VAC
.2A @ 250 VDC
6A @ 24 VDC
Signal light illumination with LED, neon or incandescent lamps in multiple colors
Up to four poles; momentary, maintained (latching) and pilot functions
