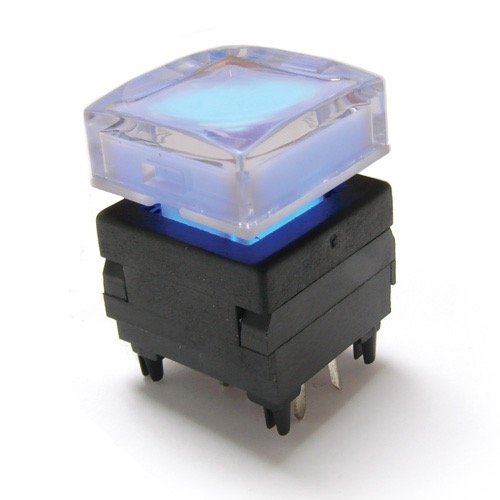

LP6 Series Illuminated Pushbutton with Multiple LED Color Options
Single pole or double pole functions
15mm square, sculptured cap
Multiple color options including RGB color
Life expectancy of 200,000 cycles
Through-hole mounting design
Full LED illumination options
SPST, DPST; momentary functions
Electrical Rating: 12mA @ 12VDC
Travel: 2.20mm
Operating/Storage Temperature: -20°C to 70°C
Operating Force: 150gf for SPST, 200gf for DPST
