PB400 Series Pushbutton Switch

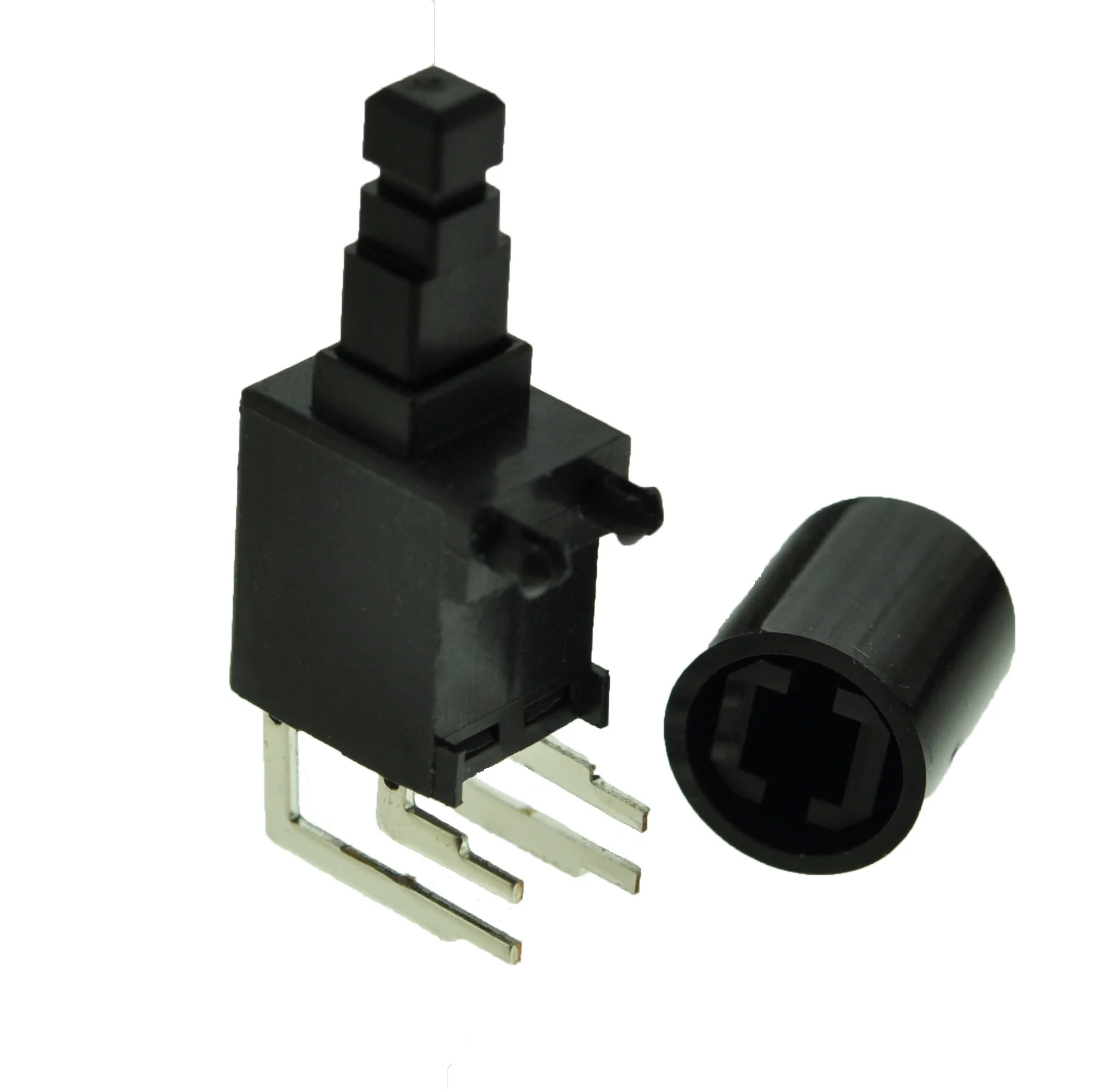

The PB400 Series right angle pushbutton switch is an affordable switch for applications running low electric loads. It's rated for 3A of 30VDC electric current and operates in temperatures ranging from -5 to 60°C. The PB400 is available as a latching or momentary pushbutton switch with a double pole, single throw (DPST) circuit. The actuator travels a total of 3.2mm and latches at 2.2mm. An optional black cap for the PB400 is also available. Applications for the PB400 Series right angle pushbutton switch include:
Computer peripherals
Telecommunications
Security devices
Consumer electronics
Instrumentation
Testing equipment
FEATURES
Affordable
Right angle pushbutton switch
DPST, momentary or maintained (latching) functionality
Optional black cap
