PZ Series Anti-Vandal, Illuminated Piezo Switch
The PZ Series is an anti-vandal, illuminated piezo switch with momentary pulse function and 50 million cycles of electrical life. This piezo switch is available in three sizes: PZ3 (16mm diameter panel cutout), PZ4 (19mm) and PZ7 (22mm). The PZ3 requires 8mm Max. panel thickness; the PZ4 and PZ7 require 10mm Max. panel thickness.

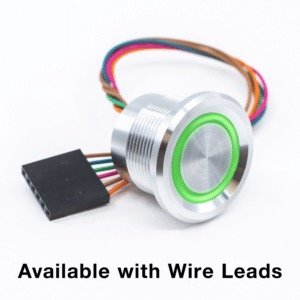

PZ Series anti-vandal piezo switches are offered as non-illuminated or with ring pattern illumination and LED RGB. Options include black or clear anodized housing finish, concave or flat bezel option and standard wire lead termination with 150mm or 300mm length leads.
The electrical rating on this illuminated piezo switch is 1A of 5-24VDC with a contact resistance 1Ω Max. This anti-vandal switch operates in temperatures ranging from -20⁰C to 65⁰C and can be stored at temperatures between -25⁰C to 65⁰C.
The PZ series anti-vandal, piezo switches are suitable for applications including:
Audio/visual equipment
Electrical housewares
Security devices
Medical equipment
Industrial controls
Kiosks
FEATURES
16mm, 19mm and 22mm panel cutout options
IP68 (in house tested)
Ring illumination options
RGB color options
Bezel options
Electrical life of 50 million cycles
