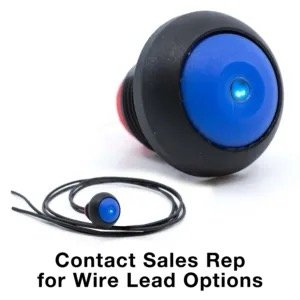

RP8300 Series Round, Illuminated Pushbutton Switch
The RP8300 Series round, illuminated pushbutton switch is encased in a metal die cast housing. This panel mount pushbutton series is for those seeking rounder edges and industrial strength durability without sacrificing style. Multiple LED and cap color options are available for this illuminated pushbutton. The RP8300 Series round pushbuttons feature a threaded panel mount, perform momentary functions, and are sealed at an IP67 rating. They also has a long life expectancy of 500,000 cycles. Applications for this round, illuminated pushbutton switch include:
Audio/visual
Electrical housewares
Floor care appliances
Medical devices
White goods
FEATURES
Sealed at an IP67 rating for dust and moisture protection
Life expectancy of 500,000 cycles
500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC electrical ratings
SPST, momentary pushbuttons
