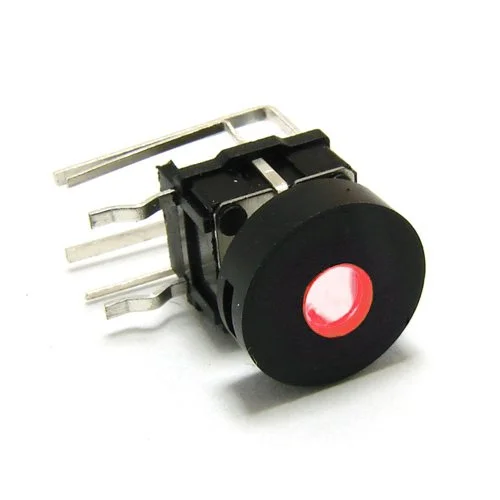

TL1260 Series Illuminated, Right Angle Tactile Switch
Our TL1260 Series through-hole tactile switches are illuminated and have a right angle termination. They are available in a variety of LED and cap colors. The TL1260 Series tact switches are manufactured with highly reliable tactile dome technology. The TL1260 Series tactile switches are rated for 50,000 life cycles and to handle 50mA of 12VDC electrical current. These tact switches will operate at temperatures ranging from -20 to 70°C. Applications for this tactile switch include:
Telecommunications
Consumer electronics
Audio/visual
Medical equipment
Testing
Instrumentation
FEATURES
6.8mm x 7mm tactile switch
160 ± 50gf operating force
LED illumination options
Right angle, through-hole mounting design
