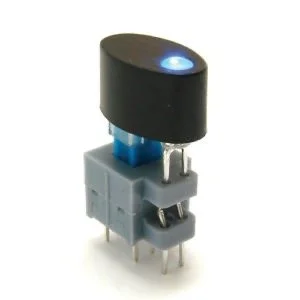

TL2205 Series Illuminated Pushbutton Switch
The TL2205 Series illuminated pushbutton switches are available as either maintained (latching) or momentary push buttons featuring long travel and a variety of LED colors: blue, red, green, yellow, or none. An optional black cap with an LED window is also available. The TL2205 Series illuminated pushbutton switch has a double pole, double throw (DPDT) circuit. Full travel of the push button is 2.5mm. The maintained version of the switch latches at 1.5mm. Both versions require 250 grams of operating force to actuate. Applications for this illuminated pushbutton switch include:
Telecommunications
Networking
Lower power on/off designs
Performance audio
FEATURES
Multiple LED illumination colors
Optional cap with LED window
100mA, 30VDC electrical rating
Through-hole mounting design
DPDT, maintained (latching) or momentary pushbuttons
