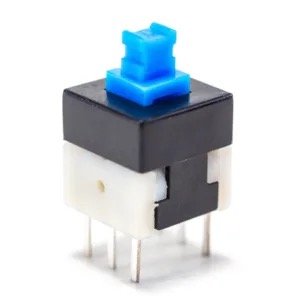

TL2285 Series Subminiature Pushbutton Switch
The TL2285 Series subminiature pushbutton switches are available as either maintained (latching) or momentary pushbuttons with long travel (2.5mm) and a Double Pole, Double Throw (DPDT) circuit. The switch is actuated when 180 grams of force is applied to the pushbutton. The TL2285 Series subminiature switch is rated for 100mA of 30VDC electric current and operates in temperatures ranging from -20 to 70°C. It has a mechanical life expectancy of 10,000 cycles. Applications for this subminiature pushbutton switch include:
Telecommunications
Networking computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
Included in this series are the TL2201, TL2202, TL2230, TL2285, and TL4201 subminiature pushbutton switches.
FEATURES
100mA, 30VDC electrical rating
PC board mounting design
DPDT, maintained (latching) or momentary pushbuttons
