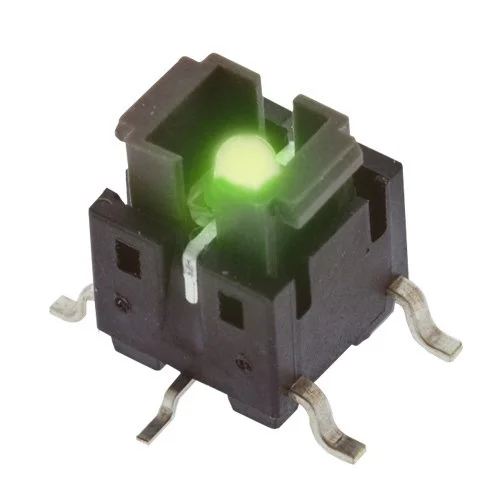

TL3240 Series LED Illuminated, SMT Tactile Switch
The TL3240 Series LED illuminated tactile switch is a surface mount (SMT) switch that offers LED illumination in blue, red, green, and yellow. Cap options are offered but are ordered and shipped separately. The caps cannot go through the re-flow soldering process. Cap color choices include black, red, blue, ivory, green, and yellow, and are offered in square or round. The TL3240 Series tact switches come in tactile tape and reel packaging at 450 pieces per reel. These tactile switches have a life expectancy of 200,000 cycles and operate in temperatures ranging from -25 to 70°C. Operating force options include 100gf, 160gf, and 260gf. Applications for this switch include, but aren't limited to:
Audio/visual
Computer peripherals
Consumer electronics
Instrumentation
Telecommunications
Medical equipment
FEATURES
6mm x 7.8mm tactile switch
100gf, 160gf, and 260gf options
Surface mount design
Tactile tape and reel packaging
