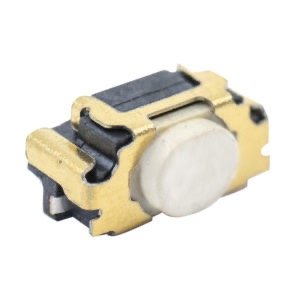

TL4115 Series Right Angle Edge, SMT Tactile Switch
The TL4115 Series tactile switch has a right angle edge, surface mount design and provides a long life expectancy of 600,000 cycles in a 4.50mm x 2.20mm x 2.60mm footprint. This tact switch series features a soft round actuator and provides 160gf or 220gf operating force options. The TL4115 Series tact switch features include SPST Off-(On) function, a 50mA, 12VDC electrical rating, dielectric strength of 250VAC for 1 minute, an operating temperature range of -30°C to 85°C, 0.15mm of actuator travel, and tactile tape and reel packaging. Applications for this tact switch series include:
Audio/visual equipment
Computer peripherals
Computer electronics
Medical equipment
Telecommunication devices
Test & instrumentation equipment
FEATURES
600,000 cycle life expectancy
Tactile tape and reel packaging
Low travel
Right angle edge, surface mount design
